When the sensing probe is installed in the duct or stack, particles in the air stream interact with the sensing probe and a charge induction effect is analysed from the probe. Distributions in the particle stream result in a frequency charge induction response which is proportional to the concentration of particles.
Previous probe technologies, such as Triboelectric, relied on particle collision to created a measured signal. Electrodynamic® systems however, filter out the dc signal caused by particle collision, which makes the quality of measurement unaffected by build up on the probes which would otherwise cause zero or calibration drift.
Very low concentrations of particulate found even after the most efficient bag filter can be measured due to this unique Electrodynamic® technique.(<0.1 mg/m3)
These sensors are able to function in stacks and ducts up to 4.5 metres and process temperatures up to 800ºC.
Electrodynamic® technology also enables the use of patented fully insulated probes, essential for reliable measurement in high humidity applications (after process and spray driers).
Product data sheets
PCME STACK 990
An Electrodynamic probe technology dust monitor that can be operated with either a Mulitcontroller or Interface Module. The PCME STACK 990 has automatic self checks, built in logging and is fully calibratable to mg/m3. The system comes with MCERTS & TUV European approval certificates.
Download PDF 19 KB
PCME VIEW 370
An Electrodynamic probe technology dust monitor that can be operated with either a Mulitcontroller or Interface Module. The PCME VIEW 370 has automatic self checks, built in logging and is fully calibratable to mg/m3.
Download PDF 12 KBLEAK ALERT 73
An Electrodynamic probe technology dust leak detector with integrated control features in the sensor.
The LEAK ALERT 73 has manual self checks and outputs a trending 4-20mA signal to alert increases in dust concentration resulting from a filter leak.
Not sure which product is right for you? Let us help.

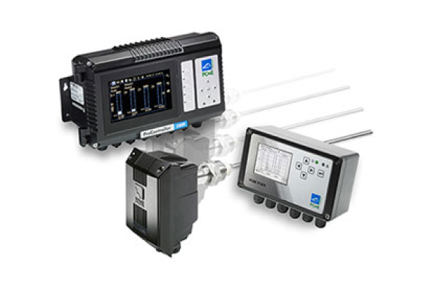

Multi-Channel Control Unit
The Multicontroller allows operation of up to 16 sensors in the one control unit.
Single Channel Control Unit
The Interface Module controls a single sensor.
Integrated Control Unit
In intergrated systems the Control Features are built into the Sensor.
